Chemical Feeder:CPI-10L, 30L, 70L
Main features:
♦ Option:Electric sensor
♦ Electromagnetic measurement pump
- Compact and lightweight pump thanks to separation plate
- Accurate discharge control
- Stable performance for long continuous operation
- Excellent chemical-proof performance and endurance
- Drip-proof and dust-proof construction
|
 |
Specifications:
| Item |
Unit |
CPI-10L |
CPI-30L |
CPI-70L |
| Installation |
- |
Fixed |
| Level sensor |
- |
Option |
| Pump type |
- |
Electromagnetic pulse |
| Max. discharge |
cc/min |
10 |
30 |
70 |
| Min. discharge |
MPa [ kgf/cm2 ] |
1.18 [ 12.0 ] |
0.49 |
| Tank capability |
L |
30 |
| Supply voltage |
v |
(*1)100/200(single) |
(*1)200(single) |
| Dimension (W x H x D) |
mm |
350 x 350 x 455 |
| Dry weight |
kg |
60 |
|

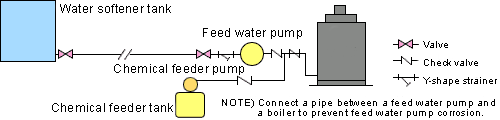

Working diagram:
 |
|
|
|
